Grip-Tite® Piering System System for Sinking Foundations

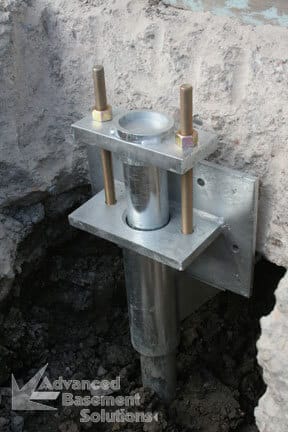

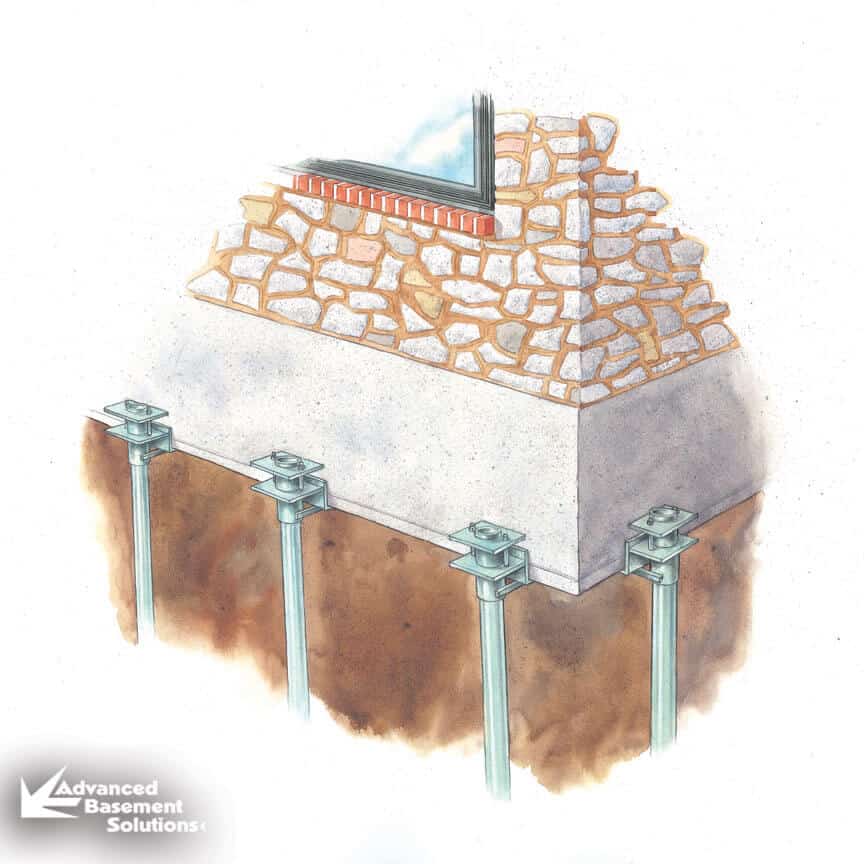

The Grip-Tite® Piering System safely and economically stabilizes a building’s foundation, thereby minimizing future settlement. The Grip-Tite® Piering System utilizes hydraulically driven steel columns and a rugged foundation bracket to transfer the structural load to deep, dense soil or bedrock. The end-bearing push pier system is suitable for both residential and commercial applications. Moreover, this system installs quickly with small equipment and in areas of limited or tight access. When compared to other driven pile systems, the Grip-Tite® Piering System proves superior due to its ability to reach greater depths and load-bearing soil. This system comes with an ICC Certification.

sinking foundation
sinking foundation equipment

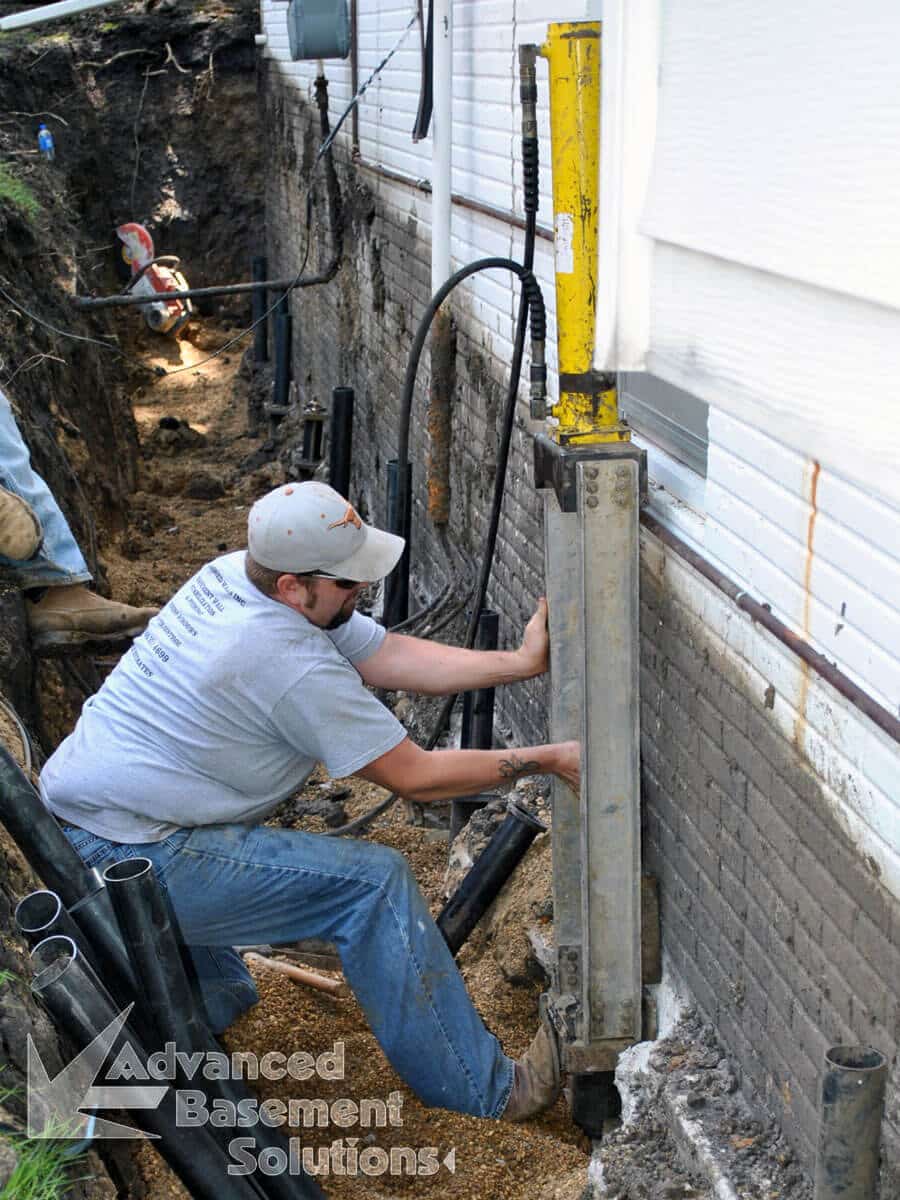

sinking foundation work

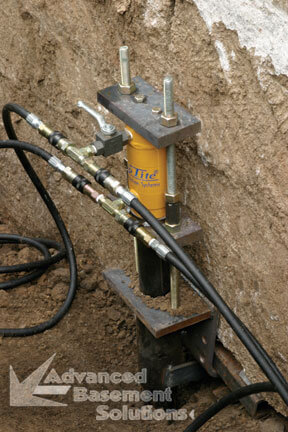

sinking foundation equipment

Advantages

End-bearing pier that does not rely on friction for capacity

Each pier load tested during installation

Ability to reach greater depths using a starter tube with friction collar

High-strength steel pier sections and sleeved couplings have high resistance to bending

Long life span, resistance to corrosion  (in moderate soils more than 100 years)
